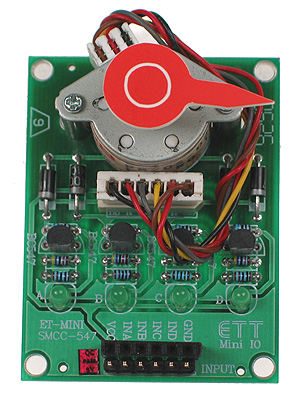

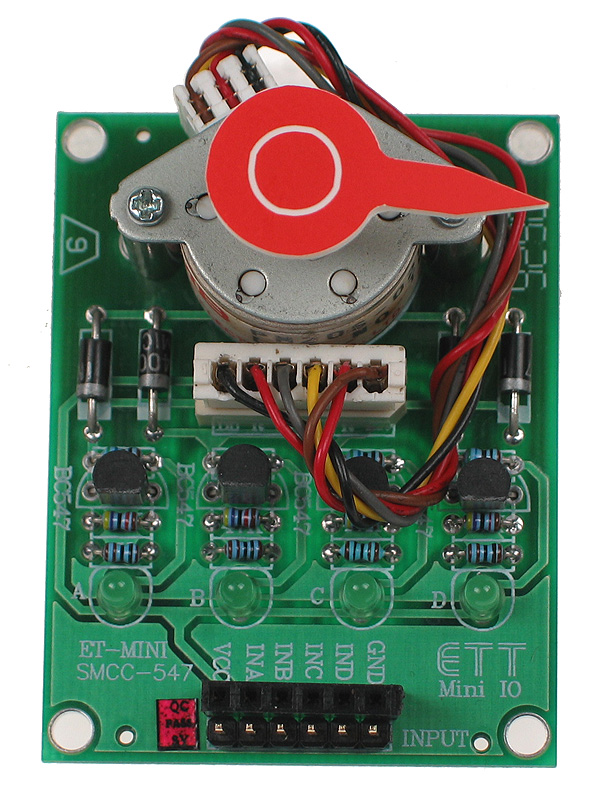

Stepper Motor Mini Board

Learn how to control and run a stepper motor with our compact Stepper Motor Mini Board. The board incorporates a small stepper combined with a series of drive transistors to enable standard TTL control of the stepper motor.

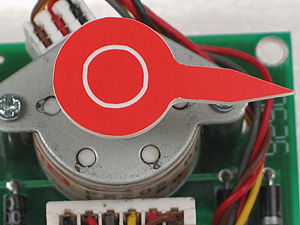

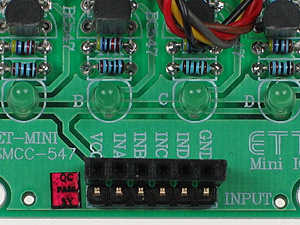

Our Stepper Motor Mini Board comes complete with an easy to connect series of male and female connectors for the INA, INB, INC and IND signals for the stepper motor. Together with LED indication for each phase. A clearly visible pointer is included to indicate stepper position. A high quality NMB stepper motor is mounted directly on the board.

The Stepper Motor Mini Board is a great way to learn and develop code for controlling a stepper motor. This board easily connects to any of our development and control boards.

Part Code: MINISTEPPER

Features

High Quality NMB Stepper Motor
Clear Visual Indication of Stepper Position
LED Indication of each Phase
Standard male and female headers for easy connection
Easy Interfacing with 5V control
Can be used with Arduino Boards and Futurlec controller boards
Board Dimensions: 45 x 55 mm
