MCP4922 Digital to Analog Converter Mini Board

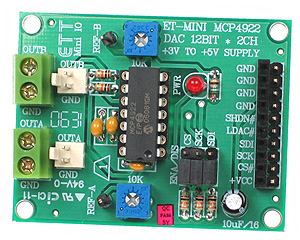

Our MCP4922 Digital to Analog Converter Mini Board is a great way to add an easily controllable highly-accurate adjustable analog output to your design or control system. This MCP4922 Board offers a 12-Bit 2-Channel Analog output that can be controlled with a standard SPI digital connection from an Arduino® or Raspberry Pi® board.

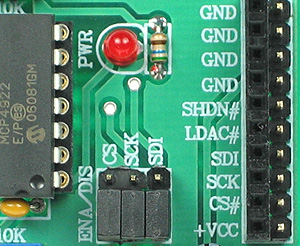

This MCP4922 Board accepts a standard female or male header connection for the SPI Connection with selectable pull-up resistors. To adjustable reference trim-pots are included on the board together with a power LED. This board utilizes the new Microchip MCP4922 DAC with optional 2x buffered output and low noise performance.

The MCP4922 Digital to Analog Converter Mini Board is an inexpensive way of adding a controllable analog output for a wide variety of applications.

Part Code: MINIDAC

Features

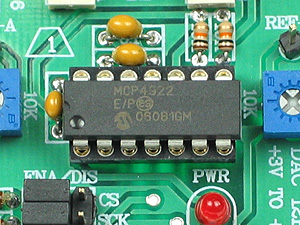

Includes Microchip MCP4922 12-Bit 2 Channel DAC
Standard SPI Data Connection with selectable Pull-Up Resistors
Male and Female Header Connection for Direct Connection to Microcontroller
Works from either a +3V or +5V Supply
Ideal for adding Analog Outputs for Motors etc
Board Dimensions: 45 x 55 mm

Technical Data

MCP4922 Datasheet
