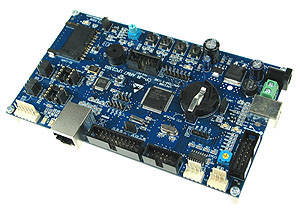

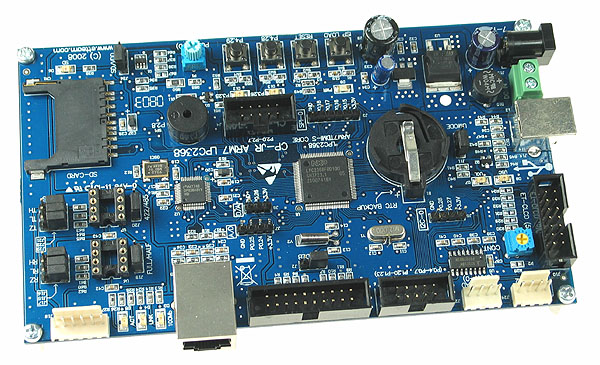

LPC2368 Controller Board - Accessories

The following accessories can be purchased directly from our web-site by clicking on the links to the relevant departments.

Integrated Circuits

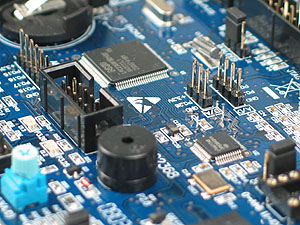

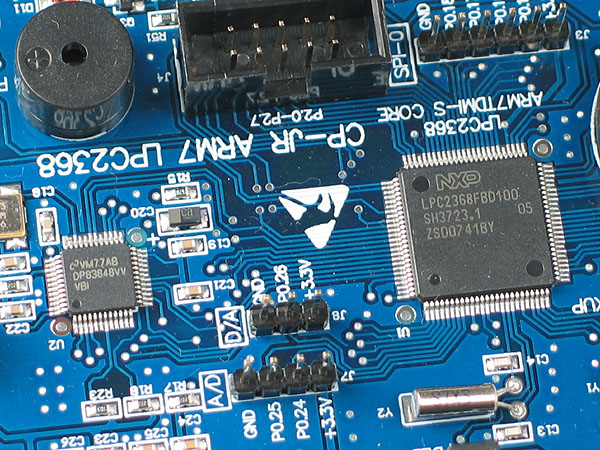

• LPC2368 Microcontroller: LPC2368
• MAX232CWE RS232 Line Drivers: MAX232
• 75176 RS422/RS485 Line Drivers: 75176 - 2 Required
• LD1086V33 3.3V Regulator: LD1086V33

Connectors

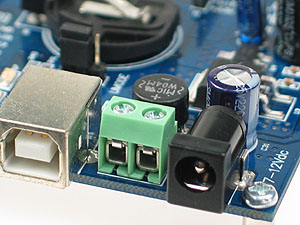

• Power Supply: 2.5mm Power Jack
• RS232 Connector: 2 x Polarized Headers (POLHDCON4 and Pins)
• RS422/RS485 Connector: 1 x Polarized Headers (POLHDCON6 and Pins)
• Port Connectors: 1 x 10 pin IDCC Connectors (IDCC10)
• LCD Connector: 1 x 14 pin IDCC Connectors (IDCC14)
• JTAG Connector: 1 x 20 pin IDCC Connectors (IDCC20)
• Keypad Connector: 1 x 10 pin IDCC Connectors (IDCC10)
• ADC Connectors: 1 x 4 pin Header Connector (HDCON4 and Pins)
• DAC Connectors: 1 x 3 pin Header Connector (HDCON3 and Pins)

Prepared Cables

• RS232 Communication: RS232 Connection Cable

LCD

• Prepared LCD with Connector: 16 x 2 LCD

Multicore Cables

• Grey Ribbon Cable: Grey Multi-core Cable
