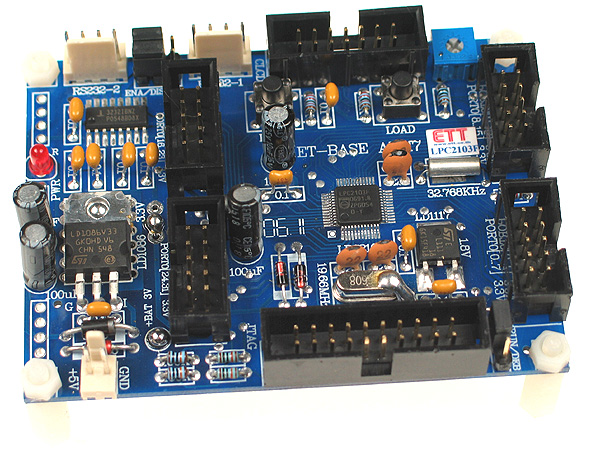

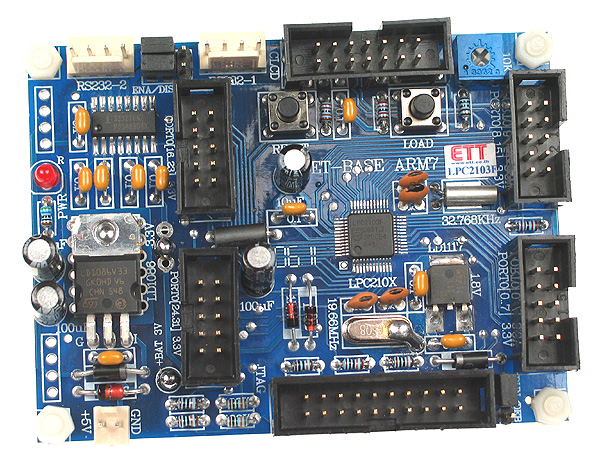

LPC2103 Controller Board

Our LPC2103 Controller Board allows you to easily develop a complete embedded system based on the powerful LPC2103 microcontroller from NXP. This microcontroller features both high-speed, large memory capacity and a host of useful peripheral features for the most demanding embedded application. All mounted on a very compact board with easy to connect headers, on-board regulator and direct program download.

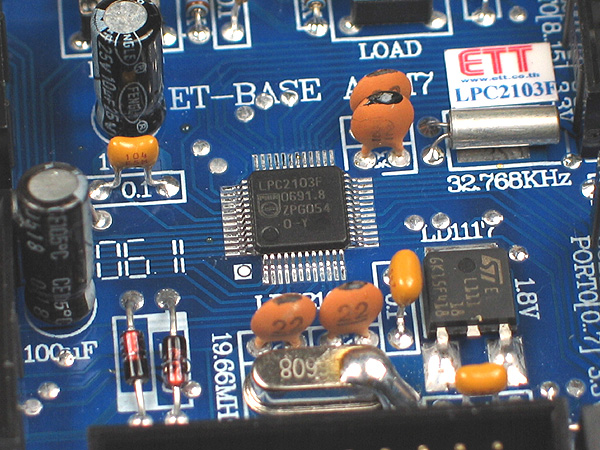

The new LPC2103 Microcontroller from Philips includes a large 32kB Flash Program Memory, ideal for the largest of applications. Together with 8kB of Data Ram space, making the microcontroller ideal for use in data gathering systems. The microcontroller is designed for high-speed applications with a maximum speed of up to 58MHz. The LPC2103 also includes a host of useful auxiliary features, including a high conversion speed 10-bit 8-channel A/D convertor, 2 channel UART, 2 SPI and I2C buses, plus a real-time clock and a load of high accuracy timers. A total of 32 I/O points are available, these are connected to standard headers on the controller, for easy connection and removal.

All the necessary support components are included, together with a Power LED, voltage regulator, Two RS232 UART's, LCD Connector with contrast adjustment, plus a reset and load switch for program execution and download. Programs can be downloaded directly via a standard RS232 serial connection, utilizing one of the RS232 ports on-board. Easy to use Windows® download software is included and this is suitable for Windows® XP/98/ME.

Our new ARM2103 Controller is the perfect solution for ARM enthusiasts, looking for a high-powered board for their embedded applications. The board is compact and can easily fit into small controller enclosures, with the necessary support components already fitted, together with easy-to-connect interface connectors to make installation a breeze. The ARM2103 Controller is ideal for high-performance control solutions.

Part Code: ARM2103CONT

Features

Includes NXP LPC2103 Microcontroller with 32kb Internal Flash Program Memory
Operating Speed up to 58.9824MHz
Direct In-Circuit Programming for Easy Program Updates
Up to 32 I/O points with easy to connect standard headers
2 RS232 Connections with MAX232
Large 8k Data RAM
8 Channel 10-Bit A/D
Two 32-bit Timers and Two 16-bit Timers
On-Board Real Time Clock
LCD Connection with Contrast Adjustment
Load and Reset Button
On-Board 3.3V Regulator
Ideal as an Interchangeable Controller for Real-Time Systems
