STMicroelectronics Releases New Miniature Multi-Sensor Module for IoT and Wearables
SensorTile includes a MEMS accelerometer, gyroscope, magnetometer, pressure sensor, and a MEMS microphone

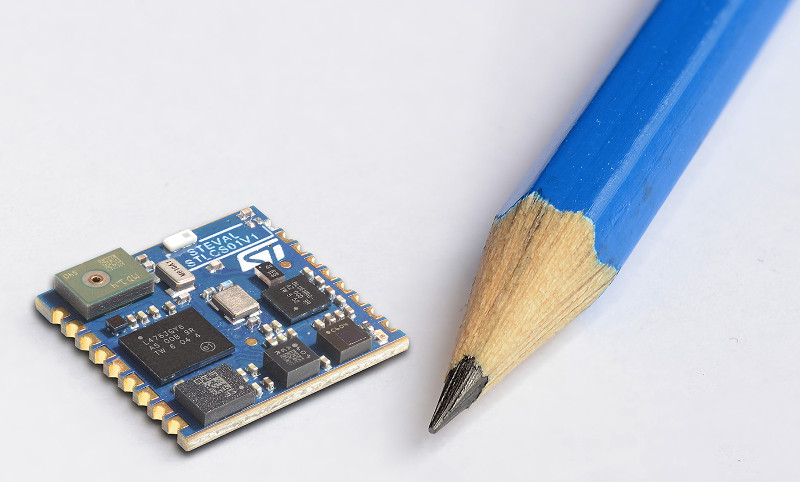

STMicroelectronics’ 13.5mm x 13.5mm SensorTile is currently the smallest turnkey sensor board of its type,
containing a MEMS accelerometer, gyroscope, magnetometer, pressure sensor, and a MEMS microphone.
With the on-board low-power STM32L4 microcontroller, it can be used as a sensing and
connectivity hub for developing products such as wearables, gaming accessories, and smart-home or
Internet-of-Things (IoT) devices.
SensorTile has a complete Bluetooth® Low-Energy transceiver including a miniature single-chip balun on-board, as well as a broad set of system interfaces that support use as a sensor-fusion hub or as a platform for firmware development. It can be simply plugged to a host board, and when powered it immediately starts streaming inertial, audio, and environmental data to ST’s BlueMS smartphone app that can be downloaded free of charge from popular app stores.
Software development is fast and easy thanks to a vast ecosystem of Application Program Interface (API) based on the STM32Cube Hardware Abstraction Layer and middleware components, including the STM32 Open Development Environment. The system is fully compatible with the Open Software eXpansion Libraries (Open.MEMS, Open.RF, and Open.AUDIO), as well as many third-party embedded sensing and voice-processing projects. Many example programs available in source code offer a starting point for evaluation and customization, including software for position sensing, activity recognition, and low-power voice communication.
The complete kit includes a cradle board, which carries the 13.5mm x 13.5mm SensorTile core system in standalone or hub mode and can be used as a reference design. This compact yet fully loaded board contains a humidity and temperature sensor, a micro-SD card socket, as well as a lithium-polymer battery (LiPo) charger. Its simple layout demonstrates how a complete wearable prototype customized with extra functionalities can be easily designed with the SensorTile core system. The pack also contains a LiPo rechargeable battery and a plastic case that provides a convenient housing for the cradle, SensorTile, and battery combination.
Also part of the SensorTile kit is a cradle/expansion board with an analog audio output, a micro-USB connector, and an Arduino-like interface that can be plugged into any STM32 Nucleo board to expand developers’ options for system and software development. A programming cable is also included.
Key Features of the SensorTile Core System include:
- LSM6DSM 3D accelerometer + 3D gyroscope
- LSM303AGR 3D Magnetometer + 3D accelerometer
- LPS22HB pressure sensor/barometer
- MP34DT04 digital MEMS microphone
- STM32L476 microcontroller
- BlueNRG-MS network processor with integrated 2.4GHz radio
For the SensorTile Curricculum, coursework and to learn about embedded systems, visit the ST Website at
STMicroelectronics SensorTile Training Course page
For more information on the SensorTile Development Kit, visit the ST Website at STMicroelectronics SensorTile product page
STM32 is a registered and/or unregistered trademark of STMicroelectronics International NV or its affiliates in the EU and/or elsewhere. In particular, STM32 is registered in the US Patent and Trademark Office.
The company's Web site address is www.st.com.
[Reprinted with kind permission from STMicroelectronics - Release Date 5th December, 2016]
