New PIC Micro Moves Software Tasks to Hardware for Improved System Performance


Microchip’s PIC18-Q43 family combines more Core Independent Peripherals to reduce CPU load and improve real-time system performance


In microcontroller (MCU) based system design, software is often the bottleneck for both time to market and system performance. By offloading many software tasks to hardware, Microchip’s next generation PIC18-Q43 family helps developers bring higher performing solutions to market faster.

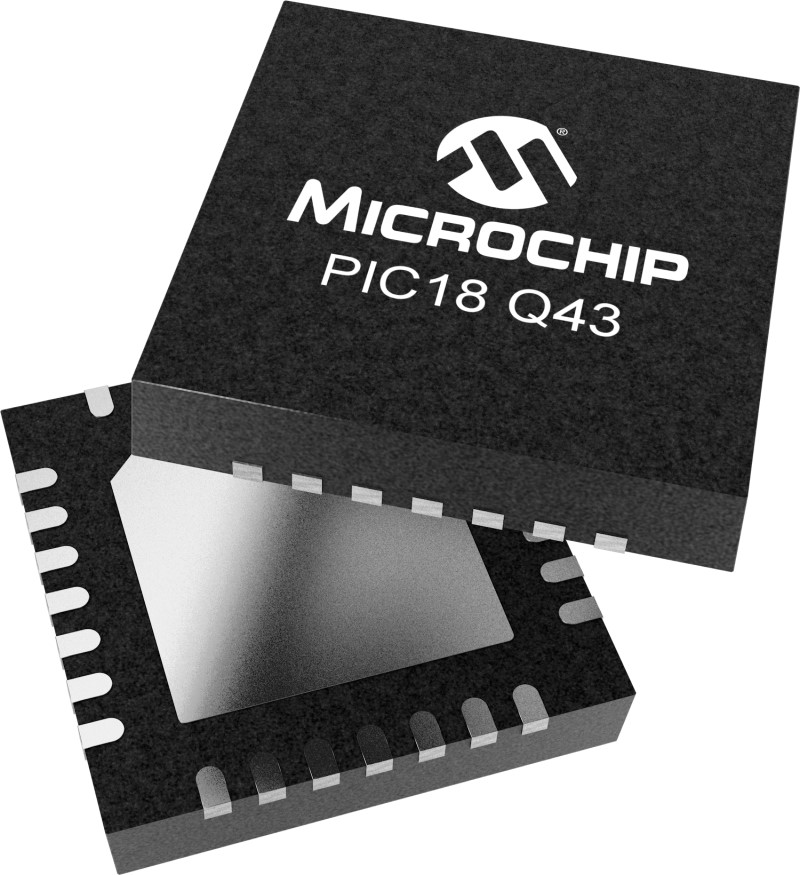

Click for Larger Image - New PIC18-Q43 Microcontroller Family The family’s combination of peripherals offers users greater versatility and simplicity when creating custom hardware-based functions with easy to use development tools. Configurable peripherals are smartly interconnected to allow near zero latency sharing of data, logic inputs or analog signals without additional code for improved system response. Ideal for a variety of real-time control and connected applications, including home appliances, security systems, motor and industrial control, lighting and Internet of Things (IoT), the PIC18-Q43 family helps reduce board space, Bill of Materials (BoM), overall costs and time to market.

Click for Larger Image - New PIC18-Q43 Moves Software Tasks to Hardware for Improved Real-Time Control Core Independent Peripherals (CIPs) are peripherals that have been designed with additional capabilities to handle a variety of tasks without the need for intervention from the Central Processing Unit (CPU). With CIPs like timers, simplified Pulse Width Modulation (PWM) output, CLCs, Analog to Digital Converter with Computation (ADCC), multiple serial communications and more, the product family is designed to make it easy for developers to customize their specific design configuration. The CLC provides programmable logic that operates outside the speed limitations of software execution, providing customers with the ability to tailor such things as waveform generation, timing measurements and more. CLCs can be the "glue" logic to connect on-chip peripherals for hardware customization with unprecedented ease. Its core-independent communication interfaces, including UART, SPI and I²C, offer flexible, easy-to-use building blocks for developers looking to create a customized device, while the addition of multiple DMA channels and interrupt management accelerate real-time control with simplified software loops. With Microchip’s comprehensive development tool suite, users can quickly and easily generate application code and customize combinations of CIPs in a graphical user interface (GUI) environment. Additionally, the family operates up to 5V which increases noise immunity and enables customers to interface to a wide range of sensors.

“The PIC18-Q43 family offers CIPs that enable many functions and even whole control loops to be realized in customizable on-chip hardware,” said Greg Robinson, associate vice president of marketing for Microchip’s 8-bit microcontroller business unit. “With the combination of flexible CIPs and high analog integration, users will significantly reduce development time and improve system performance by automating waveform control, timing and measurement operations and logic functions.”

More information on the PIC18-Q43 Product Family can be found on the Microchip Web site at Microchip PIC18-Q43 main page

Note: The Microchip name and logo, and the Microchip logo, are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. All other trademarks mentioned herein are the property of their respective companies.


The company's Web site address is www.microchip.com
[Reprinted with kind permission from Microchip Corporation - Release Date, 12th February, 2020]
