Microchip Releases New USB PIC® Microcontrollers with Integral LCD Support


New 14-pin and 20-pin Devices Available with eXtreme Low Power and USB


Microchip has just expanded its Full-Speed USB 2.0 Device PIC® microcontroller portfolio with three new Enhanced Midrange 8-bit families comprising 15 scalable MCUs ranging from 14 to 100 pins with up to 128 KB of Flash. All feature internal clock sources with the 0.25% clock accuracy necessary for USB communication, which saves up to $0.15 by eliminating the need for an external crystal. Additionally, all three families are eXtreme Low Power compliant, with power consumption down to 35 µA/MHz Active and 20 nA in Sleep mode.

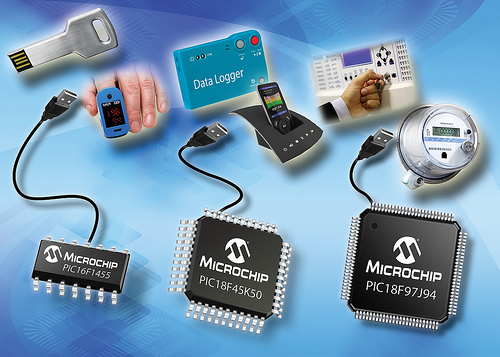

Click for Larger Image - Microchip Release New USB PIC Microcontrollers The 14- and 20-pin PIC16F145X MCUs are Microchip's lowest-cost and smallest-form-factor USB MCUs to date. Available in packages as small as 4x4 mm and featuring a wide array of integrated peripherals, the three-member family enables embedded applications that require USB connectivity and capacitive touch sensing, such as pulse oxymeters, PC accessories and security dongles.

The PIC18F2X/4XK50 devices, available in 28- and 40/44-pins, offer a cost-effective, pin-compatible migration option for customers utilizing legacy PIC18 USB MCUs. The three family members feature 1.8-5V operation, and integrate a “Charge Time Measurement Unit” for higher performance cap-touch sensing as well as measurement in applications such as audio docks and data loggers.

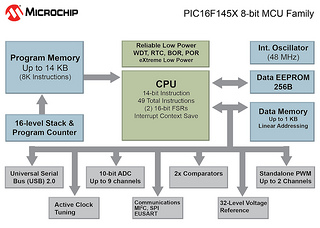

Click for Larger Image - Block Diagram for New USB PIC Microcontrollers The full-featured PIC18F97J94 family is Microchip's first to offer integrated LCD control, RTCC with Vbat, and USB on a single 8-bit PIC microcontroller. Available in 64, 80 and 100 pins, the nine-member family offers a 60x8 LCD controller (for a total of 480 segments), which eliminates the need for an external controller in applications with large segmented displays. It also integrates a real-time clock/calendar with battery back-up for end products such as home-automation/security panels, handheld scanners and single-phase energy meters.

“Today's broad announcement demonstrates our commitment to innovation in the 8-bit MCU market,” said Steve Drehobl, vice president of Microchip's MCU8 Division. “No one else offers crystal-free USB microcontrollers from 14 to 100 pins with this level of integration and low power consumption.”

More information on the PIC18F97J94 Microcontroller can be found on the Microchip Web site at Microchip PIC18F97J94 product page

Note: The Microchip name and the Microchip logo are registered trademarks of Microchip Technology Incorporated in the U.S.A and other countries. All other trademarks mentioned herein are the property of their respective companies.


The company's Web site address is www.microchip.com
[Reprinted with kind permission from Microchip Corporation]
