New PIC Microcontrollers With Up To 1MB of Dual-Partition Flash Memory


New Microcontrollers have Live Update Capability, Allowing Program to Run Whilst New Code is being Loaded


Microchip has announced the expansion of its Low Power PIC® microcontroller (MCU) portfolio. Features of the new PIC24F "GB6" family include up to 1 MB of Flash memory with Error Correction Code (ECC) and 32 KB of RAM, making it the first 16-bit MCU in Microchip's portfolio to offer such a large memory size. Also featuring dual-partition Flash with Live Update capability, these devices can hold two independent software applications, permitting the simultaneous programming of one partition while executing application code from the other. This powerful combination of features makes the PIC24F "GB6" family ideal for industrial, computer, medical/fitness and portable applications that require a long battery life, and data transfer and storage without the need of external memory, such as electricity metering, HVAC control, fingerprint scanners and gaming.

Click for Larger Image - New PIC Microcontrollers With Up To 1MB of Dual-Partition Flash Memory

“Large on-chip memory is always desirable, and with 1 MB of Flash, our customers can eliminate external memory to lower system cost,” said Joe Thomsen, vice president of Microchip's MCU16 Division. “This family also offers dual-partition Flash with Live Update capability, enabling execution from one part of the memory while updating your code.”

MCUs in the PIC24F "GB6" family have Active current consumption as low as 190 µA/MHz, and 3.2 µA in Sleep mode. With the ability to perform over-the-air firmware updates, designers can provide a cost-effective, reliable and secure method for updating their applications.

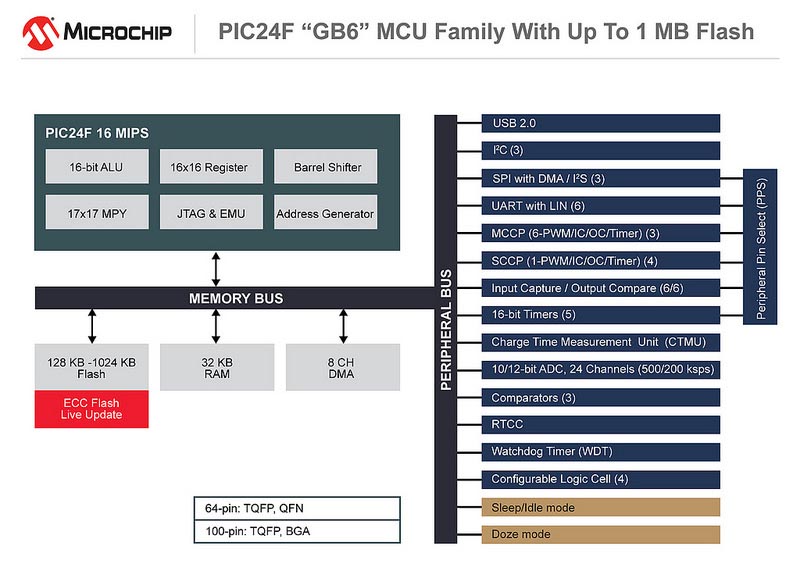

Click for Larger Image - New PIC Microcontrollers With Up To 1MB of Dual-Partition Flash Memory

The robust peripheral set for these devices includes a 200 ksps, 24 channel, 12-bit analog-to-digital converter (ADC); up to 12 timers, six UARTS and USB-OTG to act as a USB device or host. Microchip Core Independent Peripherals (CIPs) that run without the CPU are also integrated into the family, including a Configurable Logic Cell (CLC) for real-time logic control and Direct Memory Access (DMA) that enables faster throughput and lowers power consumption.


Features of the PIC24F GB6 Microcontroller Family

  • CPU
    • Modified Harvard Architecture
    • Up to 16 MIPS Operation @ 32 MHz
    • 8 MHz Internal Oscillator
    • 17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
    • 32-Bit by 16-Bit Hardware Divider
    • 16 x 16-Bit Working Register Array
    • C Compiler Optimized Instruction Set Architecture
  • Live Update
    • Dual Partition Flash with Live Update Capability
    • Capable of Holding Two Independent Software Applications, including Bootloader
    • Permits Simultaneous Programming of One Partition while Executing Application Code from the Other
    • Allows Run-Time Switching Between Active Partitions
  • Low-Power Features
    • Sleep and Idle modes Selectively Shut Down Peripherals and/or Core for Substantial Power Reduction and Fast Wake-up
    • Doze mode Allows CPU to Run at a Lower Clock Speed than Peripherals
    • Alternate Clock modes Allow On-the-Fly Switching to a Lower Clock Speed for Selective Power Reduction
  • Universal Serial Bus (USB) Features
    • USB v2.0 On-The-Go Compliant
    • USB Device mode Operation from FRC Oscillator – No Crystal Oscillator Required
    • Low-Speed (1.5 Mb/s) and Full-Speed (12 Mb/s) USB Operation in Host mode
    • Supports up to 32 Endpoints (16 bidirectional)
    • Supports Control, Interrupt, Isochronous and Bulk Transfers
    • On-Chip Pull-up and Pull-Down Resistors
  • Analog Features
    • 10/12-Bit, up to 24-Channel Analog-to-Digital (A/D) Converter:
    • Three Rail-to-Rail, Enhanced Analog Comparators with Programmable Input/Output Configuration
    • Charge Time Measurement Unit
  • Peripheral Features
    • Peripheral Pin Select – Allows Independent I/O Mapping of Many Peripherals
    • Eight-Channel DMA Supports All Peripheral modules
    • Six Input Capture modules, Each with a Dedicated 16-Bit Timer
    • Six Output Compare/PWM modules, Each with a Dedicated 16-Bit Timer
    • Four Single Output CCPs and Three Multiple Output CCPs
    • Enhanced Parallel Master/Slave Port
    • Hardware Real-Time Clock/Calendar with Timestamping
    • Programmable 32-Bit Cyclic Redundancy Check Generator
    • Four Configurable Logic Cells
    • 5.5V Tolerant Inputs on Multiple I/O Pins

More information on the PIC24F GB6 Microcontroller Family can be found on the Microchip website at Microchip PIC24F GB6 Series webpage.


Note: The Microchip name and the Microchip logo are registered trademarks of Microchip Technology Incorporated in the U.S.A and other countries. All other trademarks mentioned herein are the property of their respective companies.


The Microchip website address is www.microchip.com
[Reprinted with kind permission from Microchip Corporation - Release Date, 24th November, 2015]
