New 42V Synchronous Buck Converter & Boost Controller


The LT8603 is a high efficiency quad output monolithic switching regulator


Analog Devices announces the release of the LT8603, a 42V input capable, high efficiency quad output monolithic switching regulator. Its flexible design combines a boost controller with two high voltage 2.5A and 1.5A synchronous step-down channels and a lower voltage 1.8A synchronous step-down channel to provide four independent outputs. The LT8603 can be configured with the boost controller to supply the input of the buck converters, enabling it to deliver three precisely regulated outputs. This is the case even when the input falls significantly below the regulated output voltages, such as in automotive cold crank or start-stop scenarios when the battery voltage can drop as low as 3V. Alternatively, the boost controller can be driven from one of the step-down outputs, providing four precisely regulated outputs with a very compact solution footprint.

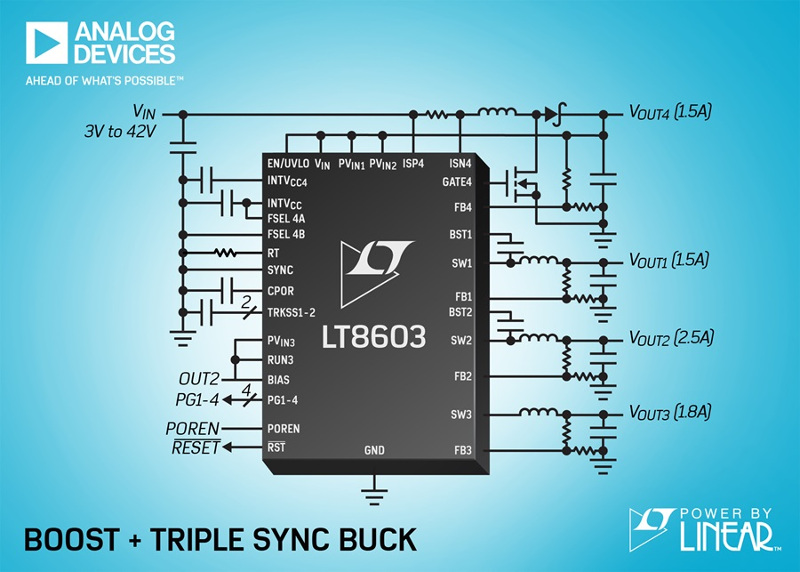

Click for Larger Image - Linear Technology Releases 42V Synchronous Buck Converter & Boost Controller

The LT8603’s triple buck synchronous rectification topology delivers up to 93% efficiency while Burst Mode® operation keeps quiescent current under 28µA (high voltage channels active) in no-load standby conditions, ideal for always-on systems. For noise-sensitive applications, the LT8603’s low EMI design meets the CISPR 25, Class 5 EMI requirements even when switching at 2MHz. The LT8603’s switching frequency can be programmed from 250kHz to 2.2MHz and is synchronizable throughout this range.

The LT8603’s 85ns (max) minimum on-time and cascading topology enables 16VIN to 0.8VOUT step-down conversions while switching at 2MHz, enabling designers to avoid critical noise-sensitive frequency bands such as AM radio, while using a very compact solution footprint. Its 3V to 42V input voltage range is ideal for automotive applications that must regulate through cold crank and stop-start scenarios with minimum input voltages as low as 3V and load dump transients in excess of 40V. Programmable power-on reset and power good indicators for each channel ensure overall system reliability. The LT8603’s 40-lead thermally enhanced 6mm x 6mm QFN package and high switching frequency keep external inductors and capacitors small, providing a compact, thermally efficient footprint.


Features of the LT8603 include:

  • Flexible Power Supply System Capable of Four Regulated Outputs with VBATT << VOUT
  • Two High Voltage Synchronous Buck Regulators
    • 3V to 42V Input Voltage Range
    • Output Currents Up to 2.5A and 1.5A
  • One Low Voltage Synchronous Buck Regulator
    • 2.6V to 5.5V Input Voltage Range
    • Output Currents Up to 1.8A
  • One Boost Controller Allows Buck Converters to Regulate with VBATT << VOUT
  • Selectable Burst Mode® Operation Allows Low 28µA IQ
  • Programmable Power-On Reset
  • Individual Channel Power Good Indicators
  • Step-Down Switching Frequency: 250kHz to 2.2MHz
  • Available in 40-Lead QFN 6mm × 6mm Package

For more information on the LT8603 Buck Converter and Boost Controller, visit the Analog Devices website at Linear Technology LT8603 product page.


The Analog Devices website address is www.analog.com
[Reprinted with kind permission from Linear Technology - Release Date: 26th February, 2018]
