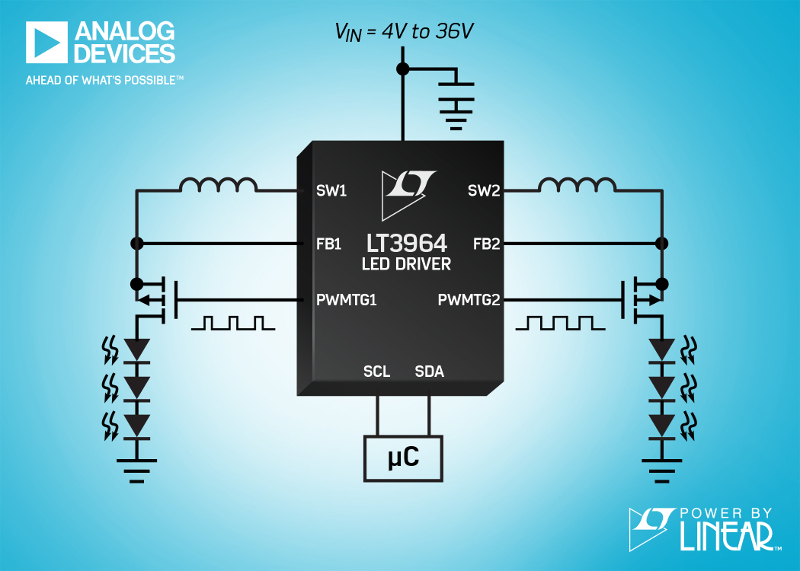

LT Releases Dual Channel Buck LED Driver
The LT3964 offers a wide input range, high efficiency and an I²C interface
Analog Devices announces the release of the LT3964, a dual channel, 36V, high efficiency, synchronous, step-down LED driver with
internal 40V, 1.6A power switches and an I²C interface for connecting to microcontrollers for LED dimming control.
The LT3964 operates with a wide 4V to 36V input range, and features two independently controlled LED drivers
that switch at up to a frequency of 2MHz, resulting in a highly integrated, compact solution with few external components.
)
The LT3964 employs fixed frequency, current mode control and operates as a constant-current and constant-voltage source
with accurate current regulation to provide optimal LED lighting in automotive, industrial and architectural lighting applications.
Synchronous operation results in efficiencies above 94% with both channels at full current load.
The 400kHz I²C interface greatly simplifies digital PWM dimming.
A PWM signal from a microcontroller to the LED driver is not necessary; instead, internal registers within the micrcontroller
are programmed with the desired dimming duty cycle, which is synchronized to the internal clock.
This provides dimming ratios up to 8192:1 and eliminates beat frequencies caused when the PWM signal and
the internal oscillator are not synchronized.
Alternatively, with analog dimming, an I²C settable 8-bit scale factor sets the control voltage-to-LED current ratio
which allows more control of analog dimming adjustments. 1000:1 external PWM dimming and 10:1 analog dimming are also provided.
The LT3964’s switching frequency can be programmed from 200kHz to 2MHz or
it can be synchronized to an external clock signal. LED driver protection features include open LED and
short-circuit LED fault detection, and LED overcurrent and overvoltage detection,
all of which can be reported via the I²C interface.
Thermal shutdown provides an additional layer of protection.
The LT3964EUHE is available in a thermally enhanced 36-lead 5mm x 6mm QFN package.
Three temperature grades are available, with operation from –40°C to 125°C (junction)
for the extended and industrial grades, and a high temperature grade of –40°C to 150°C.
Features of the LT3964 include:
- Two Independent Synchronous Step-Down Monolithic LED Drivers
- 1.6A Output Current per Channel
- I²C Interface Programs Dimming & Monitors Faults
- 8192:1 I²C True Color PWM Dimming
- Up to 2MHz Switching Frequency
For more information on the LT3964 Dual Buck LED Driver, visit the Analog Devices Website at
Linear Technology LT3964 product page
The company's Web site address is www.analog.com.
[Reprinted with kind permission from Linear Technology - Release Date: 28th November, 2017]
