New 2.5A Backup Power Manager for Li-Ion Battery Backup Systems


The Linear Technology LTC4040 includes a Bi-Directional Synchronous Converter for High Efficiency Battery Charging


Linear Technology (now part of Analog Devices) has released the LTC4040, a complete lithium battery backup power management system for 3.5V to 5V supply rails that must be kept active during a main power failure. Batteries provide considerably more energy than supercapacitors, making them superior for applications which require backup for extended periods of time. The LTC4040 uses an on-chip bidirectional synchronous converter to provide high efficiency battery charging as well as high current, high efficiency backup power. When external power is available, the device operates as a step-down battery charger for single-cell Li-Ion or LiFePO4 batteries while giving preference to the system load. When the input supply drops below the adjustable Power-Fail Input (PFI) threshold the LTC4040 operates as a step-up regulator capable of delivering up to 2.5A to the system output from the backup battery. During a power fail event, the device’s PowerPath™ control provides reverse blocking and a seamless switchover between input power and backup power. Typical applications for the LTC4040 include fleet and asset tracking, automotive GPS data loggers, automotive telematics systems, toll collection systems, security systems, communications systems, industrial backup and USB-powered devices.

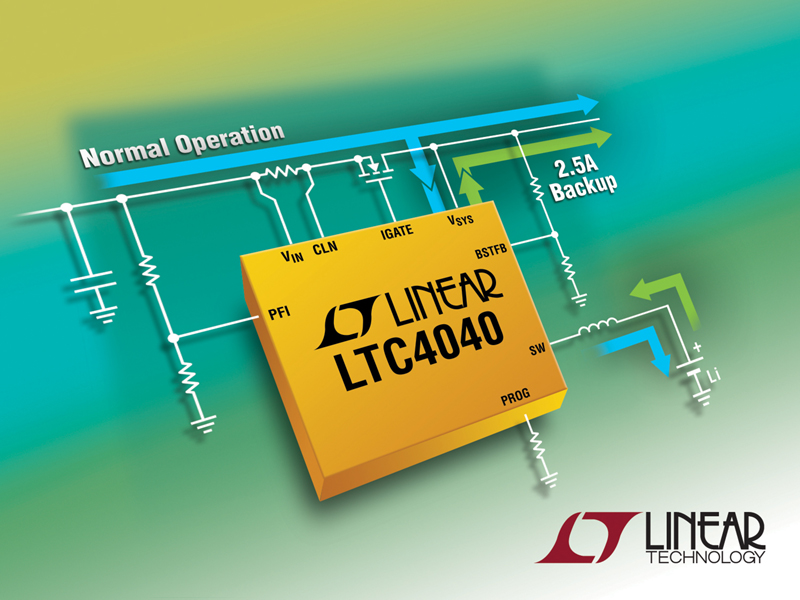

Click for Larger Image - New 2.5A Backup Power Manager for Li-Ion Battery Backup Systems

The LTC4040 also includes optional overvoltage protection (OVP) which protects the IC from input voltages greater than 60V with an external FET. Its adjustable input current limit function enables operation from a current limited source while prioritizing system load current over battery charge current. An external disconnect switch isolates the primary input supply from the system during backup. The LTC4040’s 2.5A battery charger provides eight selectable charge voltages optimized for Li-Ion and LiFePO batteries. The device also includes input current monitoring, an input power loss indicator and a system power loss indicator.


Features of the LTC4040 include:

  • Step-Up Backup Supply & Step-Down Battery Charger
  • 6.5A Switch for 2.5A Boost Backup from 3.2V Battery
  • Input Current Limit Prioritizes Load Over Charge Current
  • Input Disconnect Switch Isolates Input During Backup
  • Automatic Seamless Switch-Over to Backup Mode
  • System Power Loss Indicator
  • Input Power Loss Indicator
  • Pin Selectable Battery: Li-Ion or LiFePO4
  • Optional Overvoltage Protection Circuitry Protects Device to >60V

The LTC4040 is currently available in a QFN24 Package and can be ordered from Analog Devices in tube or reel packaging.


For more information on the LTC4040 2.5A Battery Backup Power Manager, visit the Analog Devices website at Linear Technology LTC4040 product page


The Analog Devices website address is www.analog.com
[Reprinted with kind permission from Linear Technology - Release Date: 3rd June, 2015]
