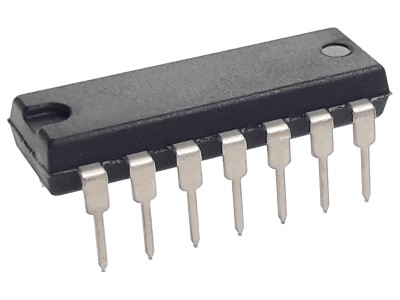

74HC74 Features
- Standard 14-Pin DIP IC
- Two Independent D-Type Flip-Flops
- High-Speed CMOS Type
- Operating Temperature to 70°C
- Equivalent to SN74HC74N, MC74HC74N, HD74HC74P
Description
The 74HC74 contains two independent positive
edge triggered D type flip-flops with separate reset and clock inputs.
Each flip-flop has a Q and complementary Q output. The data at the
D-input of the flip-flop is transferred to the Q-output on the next
positive going edge signal from the clock.
|
Part Summary
|
|
Manufacturer
|
Various
|
|
Manufacturer's Part Number
|
74HC74
|
|
Manufacturer's Web Site
|
-
|
|
Futurlec Part Number
|
74HC74
|
|
Department
|
Integrated Circuits
|
|
Category
|
74HC Series
|
|
RoHS Compliant
|
Yes
|
|
Package Type
|
14 Pin DIP
|
|
Technical Data
|
74HC74 Datasheet
|
