Single Blue 2.3" Common Cathode 7-Segment LED Display Data

Photograph
7SB23011AB - Single Blue 2.3in CC 7-Segment LED Display

Features
  • Ideal for Queue Numbers, Scoreboards and Large Clocks
  • Ultrabright Blue LEDs
  • Easy to Read
  • RoHS Compliant

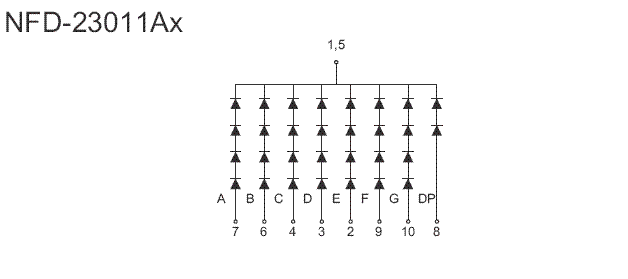

Circuit Diagram
7SB23011AB - Single Blue 2.3in CC 7-Segment LED Display Circuit Diagram

Dimensions
7SB23011AB - Single Blue 2.3in CC 7-Segment LED Display Dimensions

Specifications

Display

  • Digit Size: 2.3"
  • Material: InGaN/SiC
  • Emitted Color: Ultra Blue
  • Dominant Wavelength: 470 nm

Absolute Maximum Ratings

  • Reverse Voltage(Vr): 5 V
  • Reverse Leakage Current (Ir): 20 µA
  • Forward Current (If): 30 mA
  • Peak Forward Current (Ifp): 100 mA
  • Power Dissipation (P): 120 mW per Segment
  • Operating Temperature (Topr): -40°C to +80°C
  • Storage Temperature (Ttsg): -40°C to +85°C
  • Lead Soldering Temperature : 260°C

Electro-Optical Data (@ 20mA)

  • Forward Voltage - Typical: 14.0V
  • Forward Voltage - Maximum: 16.0V
  • Forward Voltage - Decimal Point - Typical: 7.0V
  • Forward Voltage - Decimal Point - Maximum: 8.0V
  • Luminous Intensity - Typical per Segment: 240.0 mcd
  • RoHS Compliant: Yes
