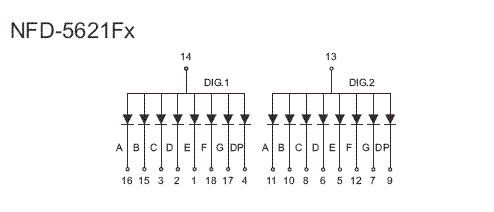

Double Hi-Red 0.56" Common Anode 7-Segment Individual LED Display Data

• Ideal for Counters and Meters
• Bright Red LEDs
• Easy to Read
• RoHS Compliant

Display

• Digit Size: 0.56"
• Material: GaAlAs/GaAs
• Emitted Color: Red
• Dominant Wavelength: 660 nm

Absolute Maximum Ratings

• Reverse Voltage(Vr): 5 V
• Reverse Leakage Current (Ir): 50 µA
• Forward Current (If): 25 mA
• Peak Forward Current (Ifp): 150 mA
• Power Dissipation (P): 60 mW per Segment
• Operating Temperature (Topr): -40°C to +80°C
• Storage Temperature (Ttsg): -40°C to +85°C
• Lead Soldering Temperature : 260°C

Electro-Optical Data (@ 20mA)

• Forward Voltage - Typical: 1.85V
• Forward Voltage - Maximum: 2.20V
• Luminous Intensity - Minimum per Segment: 128 mcd
• Luminous Intensity - Typical per Segment: 192 mcd
• RoHS Compliant: Yes
