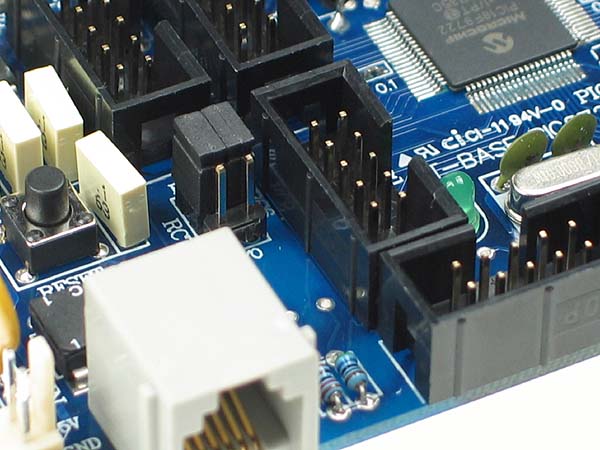

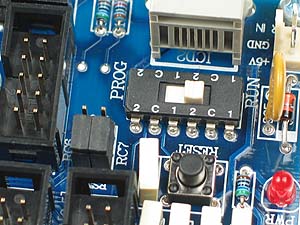

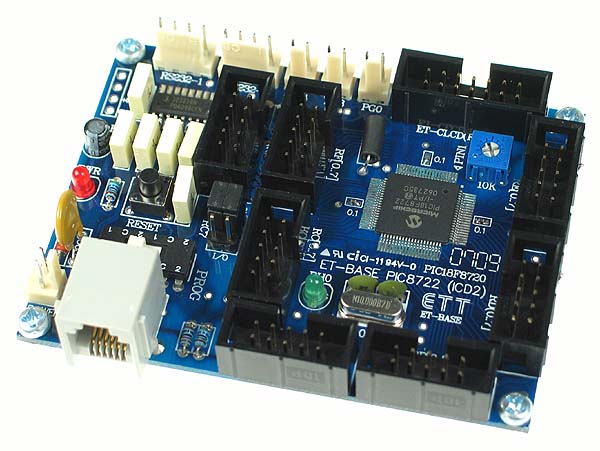

PIC18F8722 Controller with ICD2 Connection

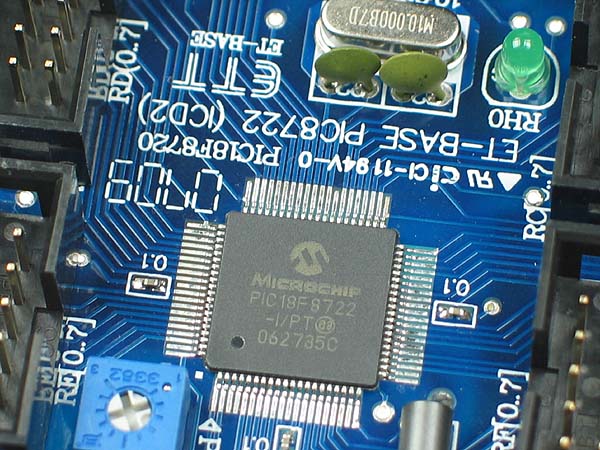

Available now our most powerful PIC Controller to date, the new PIC18F8722 Controller board. Featuring the high performance PIC18F8722 Microcontroller with a massive
128k of internal Flash Memory. Optimized and ideal for large C programs, this small compact controller will suit the most demanding
applications with heaps of features combined with high-speed operation.
The PIC18F8722 Microcontroller is loaded with features, inlcuding an optimized core for high speed operation. Full linear
program memory addressing for the full 128k of program memory. Hardware implemented 8 x 8 Multiply instruction. Additional
external memory can be easily added for up to 2MBytes. Up to 16-Channels of 10-bit A/D Converters are included together with
5 Capture/Compare Modules and 2 USART ports. Up to 70 I/O points are available with all port connectors brought out to standard headers for easy connect and disconnect.
In-Circuit program download is also provided with either our USB PIC Programmer or the Microchip ICD2 Debugger®, enabling the board to be easily updated with new code and modified as required, without the need
to remove the microcontroller.
All the necessary support components are included, together with a Power and Programming LED for easy status indication. Plus a reset switch for program execution and a RS232 connection for
data transfer to and from a standard RS232 port, available on most computers.
Our new PIC18F8722 Controller is suited for the most heavy duty embedded applications with loads of program memory and
heaps of I/O points for controlling a wide range of applications. Programs can be easily updated with
direct in-circuit programming making this unit perfect for industrial and commercial controllers. The optimized core
and high speed operation is ideal for large C programs where a large number of computations need to be processed quickly.
The PIC18F8722 Controller is the ideal choice for those large control applications where large memory and high speed
are essential requirements.
Part Code: PIC18F8722CONT
- Includes Powerful Microchip PIC18F8722 Microcontroller with 128kb Internal Flash Program Memory
- Operating Speed at 10MHz
- Direct In-Circuit Programming and Debugging with Microchip® ICD2 or our USB PIC Programmer
- Up to 70 I/O points with easy to connect standard headers
- RS232 Connection with MAX232
- Internal EEPROM
- 16 Channel 10-bit A/D Convertor
- Three 16-bit Timers with Two 8-bit Timers
- Power and Programming LED
- Reset Button
- LCD Connection with Contrast Adjustment
- Ideal as an Interchangeable Controller for Real-Time Systems
