TACT010 - Raised Yellow Tactile Switch Technical Data - Buy TACT010

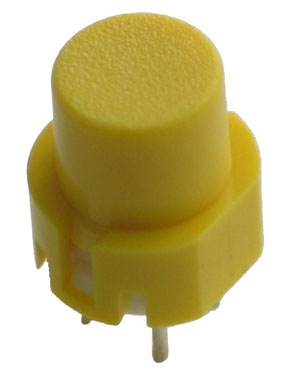

Photograph
TACT010 - Raised Yellow Tactile Switch

Dimensions
TACT010 - Raised Yellow Tactile Switch Top View

TACT010 - Raised Yellow Tactile Switch Side View

TACT010 - Raised Yellow Tactile Switch Side View

TACT010 - Raised Yellow Tactile Switch Schematic and Pin Layout

All Dimensions are in mm

Features

Attractive Professional Look for Control Panels

SPST Momentary ON Contact

PCB Mounting

RoHS Compliant


Specifications

Current Rating: 10mA @ 35Vdc

Operating Force: 130±40gf

Electrical Life: 250,000 Cycle Minimum at Full Load

Contact Resistance: 100 mohm Maximum

Insulation Resistance: 100 Mohm at 500VDC

Withstand Voltage: 500VAC for 1 Minute

Capacitance: 1pF

Bounce Time: 10mS

Temperature Range: -25°C to +70°C
