TACT008 - Raised Black Tactile Switch Technical Data - Buy TACT008

Photograph
TACT008 - Raised Black Tactile Switch

Dimensions
TACT008 - Raised Black Tactile Switch Top View

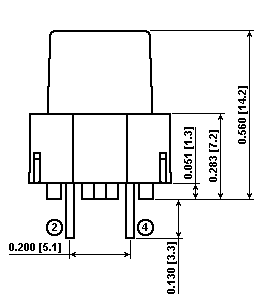

TACT008 - Raised Black Tactile Switch Side View

TACT008 - Raised Black Tactile Switch Side View

TACT008 - Raised Black Tactile Switch Schematic and Pin Layout

All Dimensions are in mm

Features

arrowAttractive Professional Look for Control Panels

arrowSPST Momentary ON Contact

arrowPCB Mounting

arrowRoHS Compliant


Specifications

arrowCurrent Rating: 10mA @ 35Vdc

arrowOperating Force: 130±40gf

arrowElectrical Life: 250,000 Cycle Minimum at Full Load

arrowContact Resistance: 100 mohm Maximum

arrowInsulation Resistance: 100 Mohm at 500VDC

arrowWithstand Voltage: 500VAC for 1 Minute

arrowCapacitance: 1pF

arrowBounce Time: 10mS

arrowTemperature Range: -25°C to +70°C
