New PIC32MX1/2 32-bit Microcontrollers with 256KB Flash Memory


Large Memory and Smart Peripheral Mix Lowers Development Costs for Touch-Sensing and Embedded-Control Applications


Microchip have released a new series within its PIC32MX1/2 32-bit microcontroller (MCU) family that features a large 256 KB Flash configuration and 16 KB of RAM in small-footprint packages. These latest additions to this popular MCU family provide flexibility to low-cost applications that need complex algorithms and application code, and they are coupled with Microchip's comprehensive software and tools for designs in graphics, touch sensing and general-purpose embedded control.

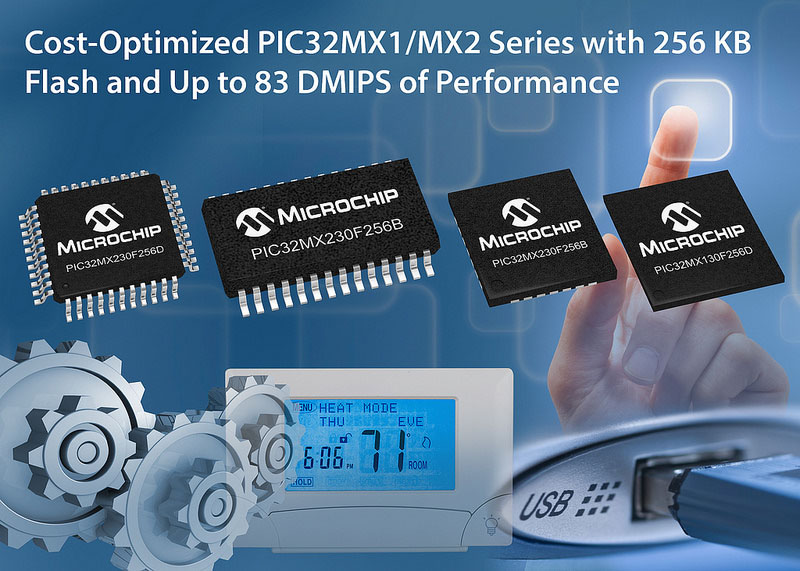

Click for Larger Image - Microchip Releases New PIC32MX1/2 32-bit Microcontrollers with 256KB Flash and High-Speed Operation

The new PIC32MX1/2 MCU series boasts a wide variety of rich features, including up to 50 MHz/83 DMIPS performance for executing advanced control applications and mTouch® capacitive touch sensing. Additional features include an enhanced 8-bit Parallel Master Port (PMP) for graphics or external memory, a 10-bit, 1 Msps, 13-channel Analog-to-Digital Converter (ADC), support for SPI and I2S serial communications interfaces and USB device/host/On-the-Go (OTG) functionality.

“This new 32-bit MCU series is ideal for the designers of embedded-control and touch applications who are looking for low-cost and smaller package options,” said Rod Drake, vice president of Microchip's MCU32 Division. “With their cost-optimized Flash configuration, performance up to 83 DMIPS, package sizes down to 6x6 mm and 0.5mm pitch and feature-packed peripherals, these MCUs offer increased flexibility to a broad range of applications while keeping design size and cost low.”

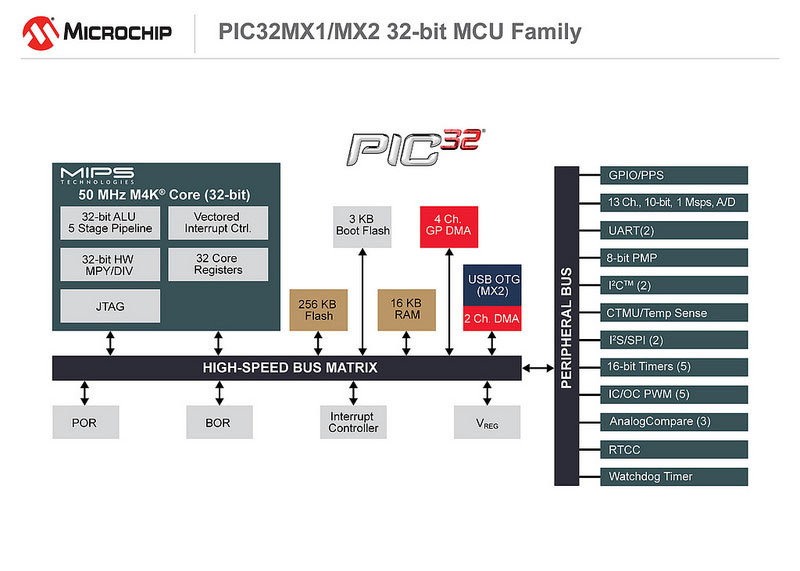

Click for Larger Image - PIC32MX PIC Microcontrollers Block Diagram

Microchip’s MPLAB® Harmony software development framework further simplifies designs, by integrating the license, resale and support of Microchip and third-party middleware, drivers, libraries and Real-Time Operating Systems (RTOS). Specifically, Microchip's readily available software packages-including USB stacks and Graphics and Touch libraries-can greatly reduce the development time of applications such as consumer, industrial and general-purpose embedded control.

Designers seeking to launch consumer products with capacitive touch screens, touch buttons or sliders, as well as USB device/host/OTG connectivity, can benefit from the functionality of the PIC32MX1/2 series of MCUs. The feature-rich peripherals of these MCUs are also ideal for medical and industrial applications, which also include displays with touch-sensing capabilities, along with general-purpose embedded control and connectivity capabilities.


Features of the PIC32MX154F128D PIC32 Microcontroller

  • Operating voltage range of 2.3V to 3.6V
  • 128KB Flash memory (plus an additional 12 KB of Boot Flash)
  • 32KB SRAM memory
  • MIPS16e® mode for up to 40% smaller code size
  • Low-power management modes (Sleep and Idle)
  • Peripheral Pin Select (PPS) functionality to allow function remap
  • 4 channels of hardware DMA with automatic data size detection
  • Two UARTs (12.5 Mbps) and two I²C™ modules
  • Hardware Real-Time Clock and Calendar
  • Five 16-bit and up to two 32-bit Timers/Counters
  • Five Capture inputs and Five Compare/PWM outputs
  • Audio/Graphics/Touch HMI Features
  • External graphics interface
  • Audio data communication: I²S, LJ, RJ, USB
  • Audio data control interface: SPI and I2C™
  • Supports mTouch™ capacitive touch sensing
  • ADC Module:
    • 10-bit 1Msps rate with one Sample and Hold
    • 13 analog inputs
    • Can operate during sleep mode
    • Flexible and independent ADC trigger sources
  • Comparators:
    • Three dual-input Comparator modules
    • Programmable references with 32 voltage points

More information on the PIC32MX1/2 32-bit Microcontrollers can be found on the Microchip website at Microchip PIC32MX154F128D Microcontroller product page


Note: The Microchip name and the Microchip logo are registered trademarks of Microchip Technology Incorporated in the U.S.A and other countries. All other trademarks mentioned herein are the property of their respective companies.


The Microchip website address is www.microchip.com
[Reprinted with kind permission from Microchip Corporation - Release Date, 19th August, 2015]
