Hello. Welcome to Futurlec. The ELECTRONIC COMPONENTS Superstore. To find the component your looking for, either search by Part Number or visit the relative department. Need Help.

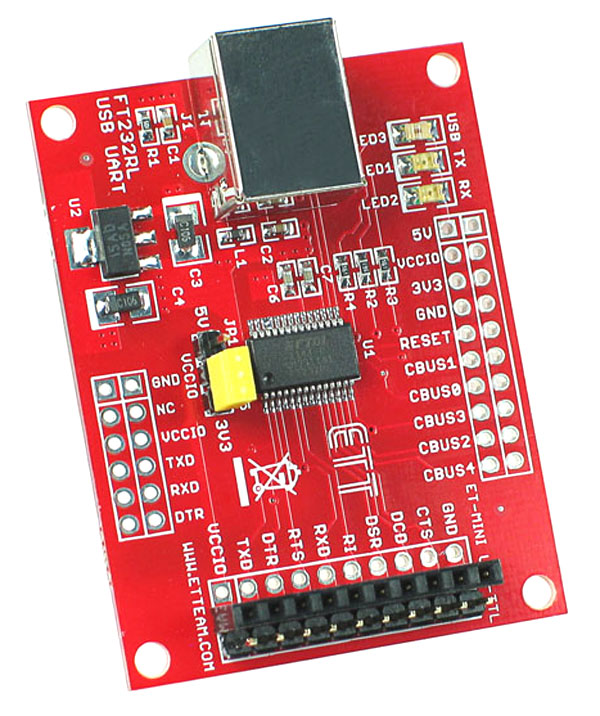

Click for Larger Image - USB Mini Board

USB Mini Board

Just Released our fantastic new USB Mini Board, the USB Mini Board is much more than your standard FT232 Board, this board is loaded with features. Based on the very popular FTDI FT232RL USB to UART Converter IC, the board allows connection to a standard USB port for sending and receiving information as well as controlling a number on I/O points. Ideal for real world interfacing and control of remote devices from your computer, the board is very easy to use and numerous drivers are available for most operating systems.

The USB Mini Board is based on the FT232RL which includes all the necessary functions and protocol for communicating using a standard USB Connection. This allows easy and hassle free transfer of data between your system and the computer. Data can be sent and received to the board using RS232, RS422 and RS485 Communication at TTL Levels with speeds up to 3MBaud. The FT232 then handles all of the necessary communication with the computer through a USB port. All the necessary support components are included on the board, with LED indication for the USB Communication, plus an onboard regulator for the 3.3V, together with standard male and female headers for connection to your system. The board will work with both 3.3V and 5V microcontroller systems, making it ideal for most microcontrollers, includes PIC, AVR and ARM microcontrollers.

Our new USB Mini Board is ideal for sending and receiving data to and from your computer using the standard USB port. The board is very easy to use and is ideal for connecting to your microcontroller or for a real world automation system.

Part Code: MINIUSB


Features

  • Includes FTDI FT232RL USB to UART Converter
  • Entire USB Protocol On-Chip Together with Transmit and Receive Buffers
  • Five I/O Pins for Use as Inputs or Outputs
  • Data Transfer Rates of up to 3 Mbaud
  • LED Indication for RX,TX and USB
  • OS Drivers Available for Windows 7, XP, Vista, Linux and Mac
  • Integrated 3.3V Regulator Onboard
  • Suitable for 3.3V or 5V Operation
  • Board Dimensions: 45 x 55 mm

Technical Data



Great Value at only $12.90

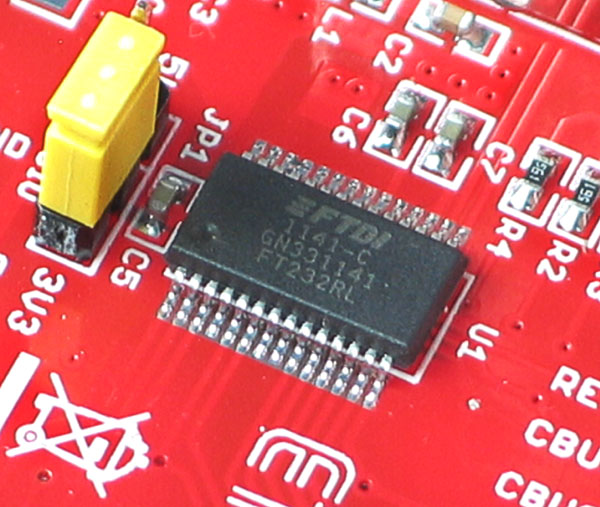

Click for Larger Image - USB Mini Board

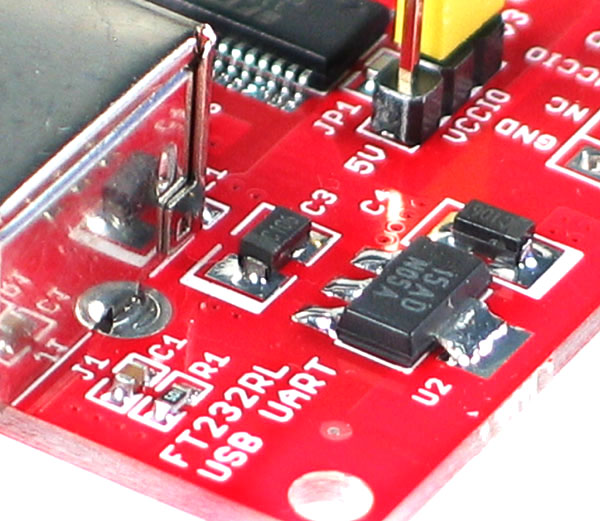

Click for Larger Image - USB Mini Board
