REDLCD16X1BL - 16x1 Red on Black Character LCD - Buy REDLCD16X1BL

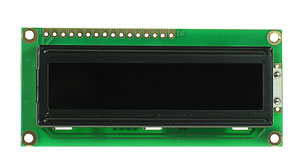

Photograph
REDLCD16X1BL - 16x1 Red on Black Character LCD
Features

arrow16 Characters x 1 Line

arrowRed Characters on Black Background

arrow5 x 8 Dots with Cursor

arrowBuilt in Controller - ST7066U

arrow+5V Power Supply

arrowBacklight Included


Dimensional Drawing
Dimension Drawing

T1=8.5mm T2=13.5mm


Dimension Drawing

All Dimensions are Shown in Millimeters


Technical Data


Electrical Characteristics

Item Symbol Conditions Min Typ Max Units
Supply Voltage for LCD VDD-VO Ta=0°C,Ta=25°C,Ta=50°C 4.7 5.0 5.5 V
Input High Voltage Vih   2.2   VDD V
Input Low Voltage Vil   0.3   0.6 V
Output High Voltage Voh   2.4     V
Output Low Voltage Vol       0.4 V
Supply Current IDD VDD=5V   1.5 2.5 mA
LED Backlight - Forward Voltage Vf     4.2 5.0 V
LED Backlight - Forward Current If Vf=4.2V 25°C   110   mA



Absolute Maximum Ratings

Item Symbol Min Typ Max Units
Operating Temperature Top 0   +50 °C
Storage Temperature Tst -20   +70 °C
Input Voltage Vi Vss   VDD V
Supply Voltage for Logic VDD-Vss 2.7 5.0 5.5 V
Supply Voltage for LCD VDD-Vo 3.0   13.0 V



Thickness

Version T1 T2 Units
LED Backlight 8.5 13.5 mm



Interface Pin Connections

No. Symbol Level Function No. Symbol Level Function
1 Vss   GND (0V) 9 DB2 H/L Data Bit 2
2 Vdd   Vcc(+5V±5%) 10 DB3 H/L Data Bit 3
3 Vo   Contrast ADJ 11 DB4 H/L Data Bit 4
4 RS H/L Register Select 12 DB5 H/L Data Bit 5
5 R/W H/L Read/Write 13 DB6 H/L Data Bit 6
6 E H/L Enable Signal 14 DB7 H/L Data Bit 7
7 DB0 H/L Data Bit 0 15 LEDA BKL+ Backlight - Positive
8 DB1 H/L Data Bit 1 16 LEDK BKL- Backlight - Negative



Display Character Address Code

Character Position 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
DD RAM Address 80 81 82 83 84 85 86 87 88 89 8A 8B 8C 8D 8E 8F


Technical Data

Data Sheet

REDLCD16X1BL - Data Sheet for HD44780 HD44780 Datasheet
