LEDMS88WH-CA - White Square 8x8 Common-Anode LED Matrix Display - Buy LEDMS88WH-CA

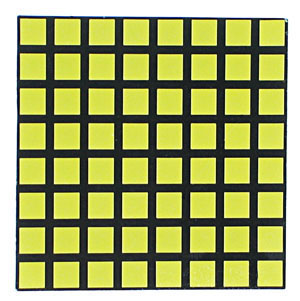

Photograph
LEDMS88WH-CA - White Square 8x8 Common-Anode Led Matrix Display

Pin Layout and Circuit Diagram

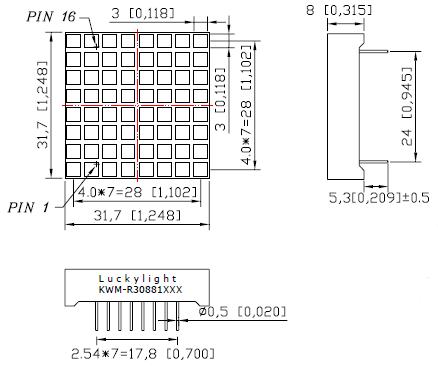

LEDMS88WH-CA - White Square 8x8 Common-Anode Led Matrix Display - Dimensions

LEDMS88WH-CA - White Square 8x8 Common-Anode Led Matrix Display - Circuit

LEDMS88WH-CA - White Square 8x8 Common-Anode Led Matrix Display - LED Reference
Features

arrow3mm Square White Dot

arrowWide Viewing Angle

arrowHigh Light Intensity

arrowIdeal for Moving LED Displays

arrowRoHS Compliant


Specifications
Display

arrowDot Size: 3mm Square

arrowMaterial: InGaN

arrowEmitted Color: White

arrowChromaticity Co-ordinates: X=0.28 Y=0.29

arrowForward Voltage: 3.2 - 4.0V


Absolute Maximum Ratings

arrowReverse Voltage(Vr): 5 V

arrowForward Current (If): 25 mA

arrowPulse Forward Current (Ifp): 100 mA

arrowPower Dissipation (Pd): 100 mw per Dot

arrowOperating Temperature (Topr): -40oC to +80oC

arrowStorage Temperature (Ttsg): -40oC to +85oC

arrowLead Soldering Temperature : 260oC
