LEDM57R - Red 5x7 LED Matrix Display - Buy LEDM57R

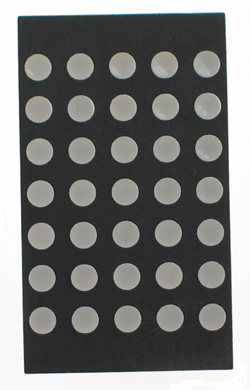

Photograph
LEDM57R - Red 5x7 LED Matrix Display

Features

arrowExcellent Dot Light Intensity

arrowStandard Red Light Output

arrowMatrix with Black Face and White Dots

arrowRoHS Compliant


Circuit Diagram
LEDM57R - Red 5x7 LED Matrix Display Circuit Diagram

Dimensions
LEDM57R - Red 5x7 LED Matrix Display Dimensions

Specifications

Display

  • LED Size: 3mm
  • Material: GaAlAs/GaAs
  • Emitted Color: Super Red
  • Peak Wavelength: 660 nm
  • RoHS Compliant: Yes

Absolute Maximum Ratings

  • Reverse Voltage(Vr): 5 V
  • Forward Current (If): 25 mA
  • Peak Forward Current (Ifp): 150 mA
  • Power Dissipation (Pd): 60 mW Per Dot
  • Operating Temperature (Topr): -40°C to +80°C
  • Storage Temperature (Ttsg): -40°C to +85°C
  • Lead Soldering Temperature : 260°C

Electro-Optical Data (@20mA)

  • Forward Voltage - Typical: 1.85V
  • Forward Voltage - Maximum: 2.2V
