LEDCLR15 - Medium 15 Red LED Cluster - Buy LEDCLR15

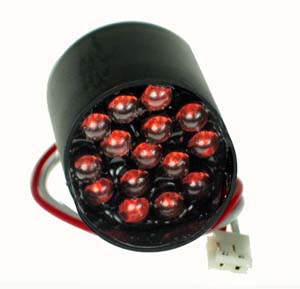

Photograph
LEDCLR15 - Medium 15 Red LED Cluster

Pin Layout and Circuit Diagram
LEDCLR15 - Medium 15 Red LED Cluster - Dimensions

LEDCLR15 - Medium 15 Red LED Cluster - Dimensions

LEDCLR15 - Medium 15 Red LED Cluster - Circuit

LEDCLR15 - Medium 15 Red LED Cluster - Circuit
Features

arrowUltrabright Red

arrowVisible from Long Distances

arrowLow Power Consumption


Specifications
Display

arrowLED Size: 3mm

arrowMaterial: AlGaINP

arrowEmitted Color: Ultra Orange

arrowPeak Wavelength: 632 nm

arrowForward Voltage: 14 - 16.1V


Absolute Maximum Ratings

arrowReverse Current(Ir): 20 µA

arrowPulse Forward Current (Ifp): 150 mA

arrowDC Forward Current (If): 30 mA

arrowPower Dissipation (Pd): 910 mw

arrowOperating Temperature (Topr): -40oC to +80oC
