LEDCLGR - Small Red-Green LED Cluster - Buy LEDCLR15

Photograph
LEDCLGR - Small Red-Green LED Cluster

Pin Layout and Circuit Diagram
LEDCLGR - Small Red-Green LED Cluster - Dimensions

LEDCLGR - Small Red-Green LED Cluster - Dimensions

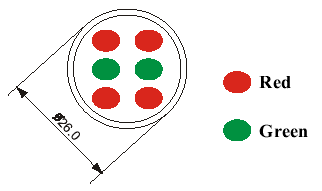

LEDCLGR - Small Red-Green LED Cluster - Circuit

LEDCLGR - Small Red-Green LED Cluster - Circuit
Features

arrowHigh Visibility

arrowCompact Size

arrowLow Power Consumption


Specifications
Display

arrowLED Size: 3mm

arrowMaterial: InGaN and AlGaINP

arrowEmitted Color: Pure Green and Ultra Orange

arrowPeak Wavelength - Green: 525 nm

arrowPeak Wavelength - Red: 632 nm

arrowForward Voltage - Green: 6.60 - 7.60V

arrowForward Voltage - Red: 8.00 - 10.00V


Absolute Maximum Ratings

arrowReverse Voltage(Vr): 5 V

arrowForward Current - Green(If): 30 mA

arrowForward Current - Red(If): 30 mA

arrowPeak Forward Current - Green(Ifp): 100 mA

arrowPeak Forward Current - Red(Ifp): 150 mA

arrowPower Dissipation - Green(Pd): 220 mw

arrowPower Dissipation Red(Pd): 260 mw

arrowOperating Temperature (Topr): -40oC to +80oC
