7FW3941BW - Four White 0.39" Common Anode 7-Segment LED Clock Display Technical Data - Buy 7FW3941BW

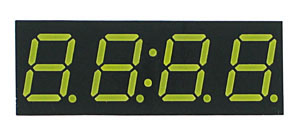

Photograph
7FW3941BW - Four White 0.39in Common Anode 7-Segment LED Clock Display

Dimensions and Circuit Diagram
Four 7-Segment LED Display Dimension Drawing

Four 7-Segment LED Display Dimension Diagram

Four 7-Segment LED Display Circuit Diagram
Features

arrowGreat for Clocks and Counters

arrowUltrabright White LED's

arrowEasy to Read

arrowRoHS Compliant


Specifications
Display

  arrowDigit Size: 0.39"

  arrowMaterial: InGaN

  arrowEmitted Color: White

  arrowChromaticity Co-ordinates: x=0.30 y=0.31


Absolute Maximum Ratings

  arrowReverse Voltage(Vr): 5 V

  arrowReverse Leakage Current (Ir): 50 µA

  arrowForward Current (If): 25mA

  arrowPeak Forward Current (Ifp): 100 mA

  arrowPower Dissipation (P): 100 mW per Segment

  arrowOperating Temperature (Topr): -40°C to +80°C

  arrowStorage Temperature (Ttsg): -40°C to +85°C

  arrowLead Soldering Temperature : 260°C


Electro-Optical Data (@20mA)

  arrowForward Voltage - Typical: 3.5V

  arrowForward Voltage - Maximum: 4.0V

  arrowLuminous Intensity - Minimum per Segment: 5 mcd

  arrowLuminous Intensity - Typical per Segment: 10 mcd
