PROGRAMMERS

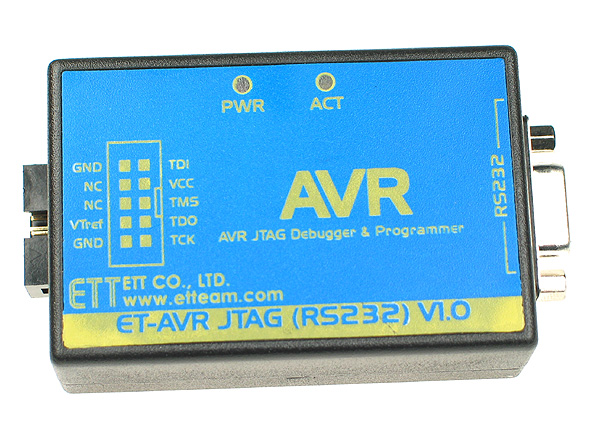

Click for Larger Image - ET-AVR JTAG Debugger & Programmer

ET-AVR JTAG Debugger & Programmer - RS232 Connection

Program and debug your Atmel AVR Microcontroller project with our great new JTAG interface. This unit plugs directly into the target board for controlling and programming your AVR device. Works with the free AVR Studio IDE and allows for single stepping through your program, viewing register values and also for programming the microcontroller. Find program errors quickly and easily, with this easy to use debugging tool.

Programs can be downloaded directly through the JTAG interface to your target board. Program execution can be initiated from the program and the various register values read and monitored through the software. Easily find program errors and control program execution through the easy to use, user interface.

The ET-AVR JTAG connects directly to your computers RS232 serial port. A 10 pin connector then connects to the target board. The power source is taken from the target board and no separate power supply is required.

The ET-AVR JTAG interface is the ideal debugging tool for developing your AVR applications.

Please Note:ET-AVR Stamp and Stamp Board sold separately

Part Code: ETAVRJTAG


Features

  • Dramatically Reduce Program Development and Testing Time
  • Single Step Through your Program and Monitor Register Values
  • Set Breakpoints and Watch Values
  • Works with Atmel AVR Studio Software
  • RS232 Standard Computer Connection
  • No Separate Power Supply Required Uses On-Board Supply
  • Power and Activity LED's

Devices Supported

  • ATMega16x: ATMega16, ATMega16L, ATMega162, ATMega162L, ATMega169, ATMega169L, ATMega169V
  • ATMega32x: ATMega32, ATMega32L, ATMega323, ATMega323L
  • ATMega64: ATMega64, ATMega64L
  • ATMega128: ATMega128, ATMega128L
  • AT90CAN128: AT90CAN128


Order Now for only $32.90

Click for Larger Image - ET-AVR JTAG with the new ET-AVR Stamp and Stamp Board

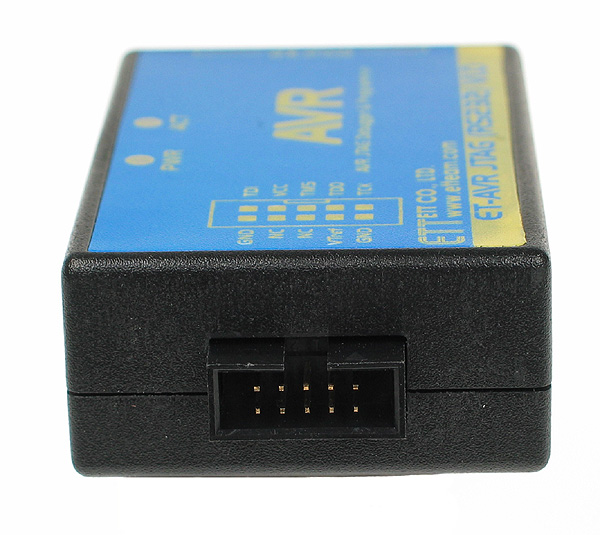

Click for Larger Image - Programming connector for connection to target board
