Hello. Welcome to Futurlec. The ELECTRONIC COMPONENTS Superstore. To find the component your looking for, either search by Part Number or visit the relative department. Need Help.

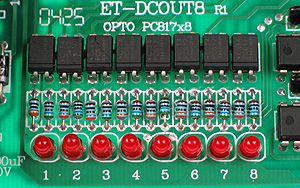

Click for Larger Image - DC Opto-Isolated Input Board

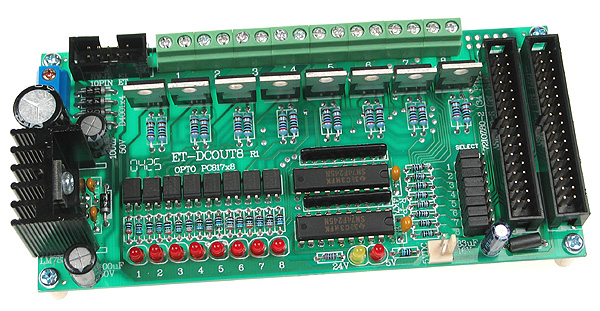

DC Opto-Isolated 8 Output Board

Just released, our new DC Opto-Isolated Output Board, ideal for use with solenoids, motors and other DC loads. Provides 24V or 5V output, and includes an on-board regulator for the power supply. The board accepts standard TTL control inputs from either a microcontroller or control system.

Our new board features a high degree of isolation with the use of opto-isolators for isolation between control signals and output controls. Each channel includes an opto-isolator together with LED indication of channel state. On-Board high current regulator is provided for supply of either 24V or 5V loads. LED inidcation is provided to show the output voltage.

Easily control your DC system with this easy to use professional designed interface board available at a fraction of the price of other competitive systems.

Part Code: ETDCOUT8


Features

  • Opto-Isolated For Improved Satefy and Reliability
  • Heavy Duty, Fast Switching Transistor Output, Suitable for up to 3A
  • LED Indication of each Output State
  • Standard IDCC connectors for easy connection
  • Standard +5V input for use with most microcontrollers and control systems
  • Ideal for use in Industrial and Commercial Systems
  • Board Dimensions: 150 x 55 mm


Order Now for only $30.90
